Oil Pressure & Temperature Combo 100 PSI / 500*F

COMPATIBLE WITH HOLLEY, FUELTECH, HALTECH, ETC.

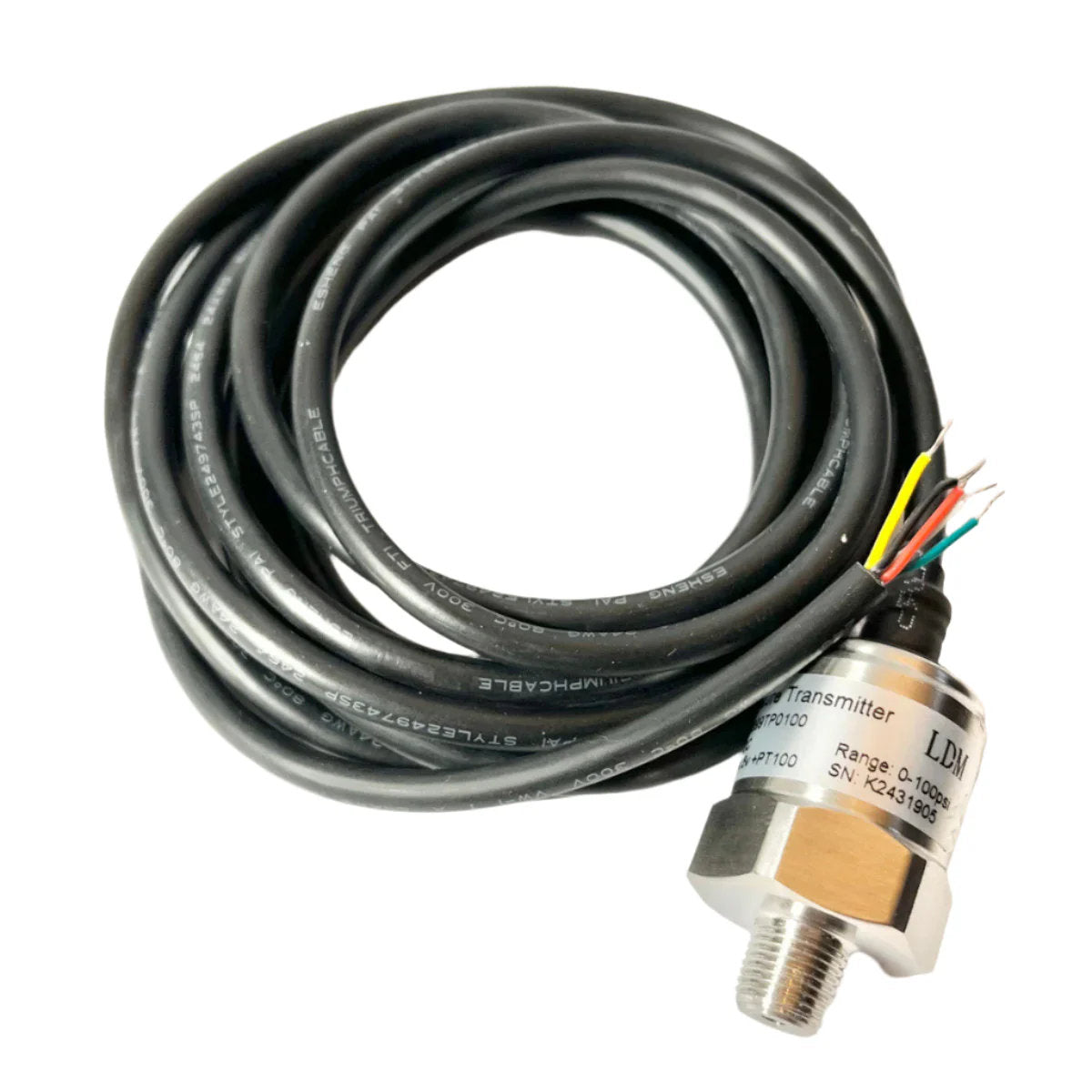

LDM899TP100 combo sensor.

outputs 0.5V to 4.5V signal for PSI.

0 to 100 psi and 0-500*F in one sensor!

Same exact size as the standard 100 psi sensor

1/8" NPT

8.5 feet flying lead. (Enough extra wire to cut and add connector where ever it is convenient.) Highly recommend adding a Deutsch DTM connector.

• Ultra compact
• ASIC Chip
• Diffused silicon oil filled
• Shock/vibration resistant
• Corrosion resistant
• 0.5% accuracy for full scale.

WIRING

• RED = 5 Volt supply
• BLACK = Negative Sensor ground
• YELLOW = Pressure signal

• White= Negative sensor ground
• Green= Signal wire to ECU
